Signal Converter

The HZA Signal Converter provides a 4-20mA input from an external speed control (e.g. Si-TEC BDG, CGC, etc.) and a 0-200mA output to HA14E / HA22E amplifier or to Woodward range of electro-hydraulic actuators.

Leaflet Steam Turbine Controls

loading...

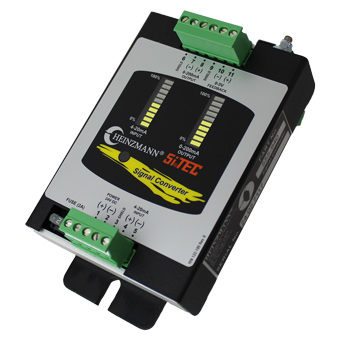

Signal Converter

Signal Converter – 4-20mA input / 0-200mA output Signal Converter

The Signal Converter is used for steam turbines and diesel or gas engines

More information

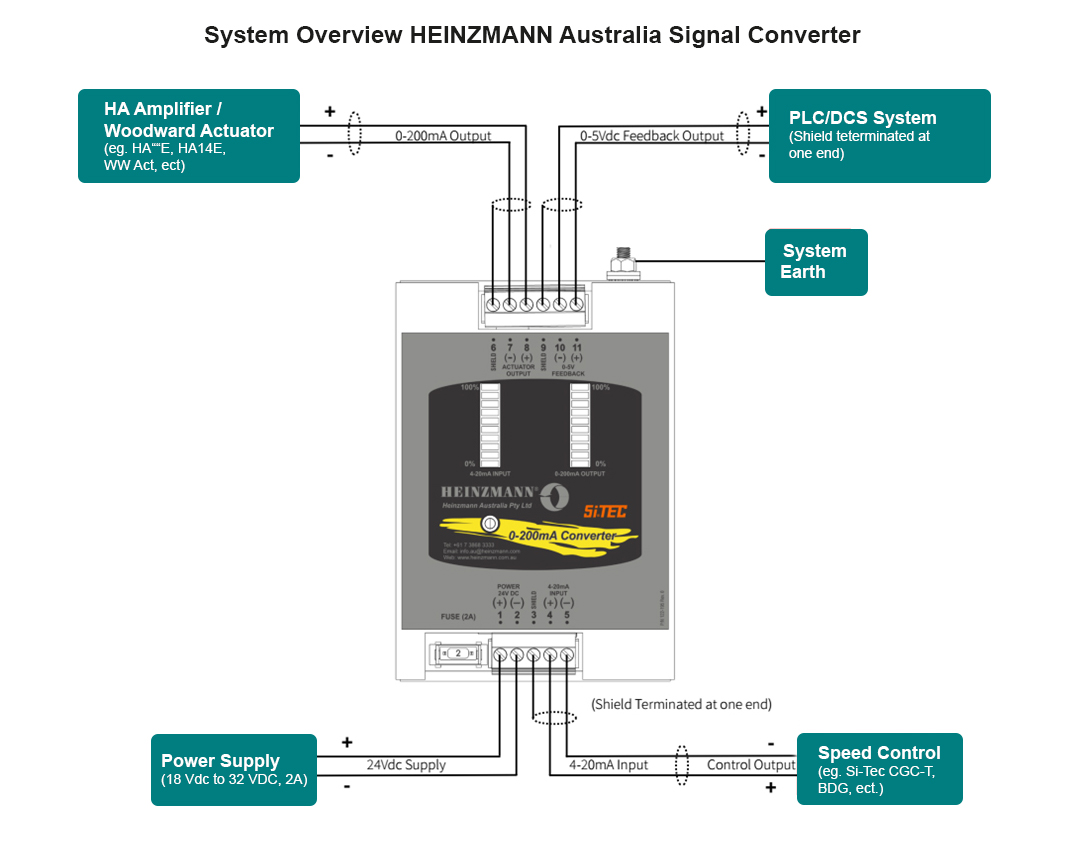

System Overview

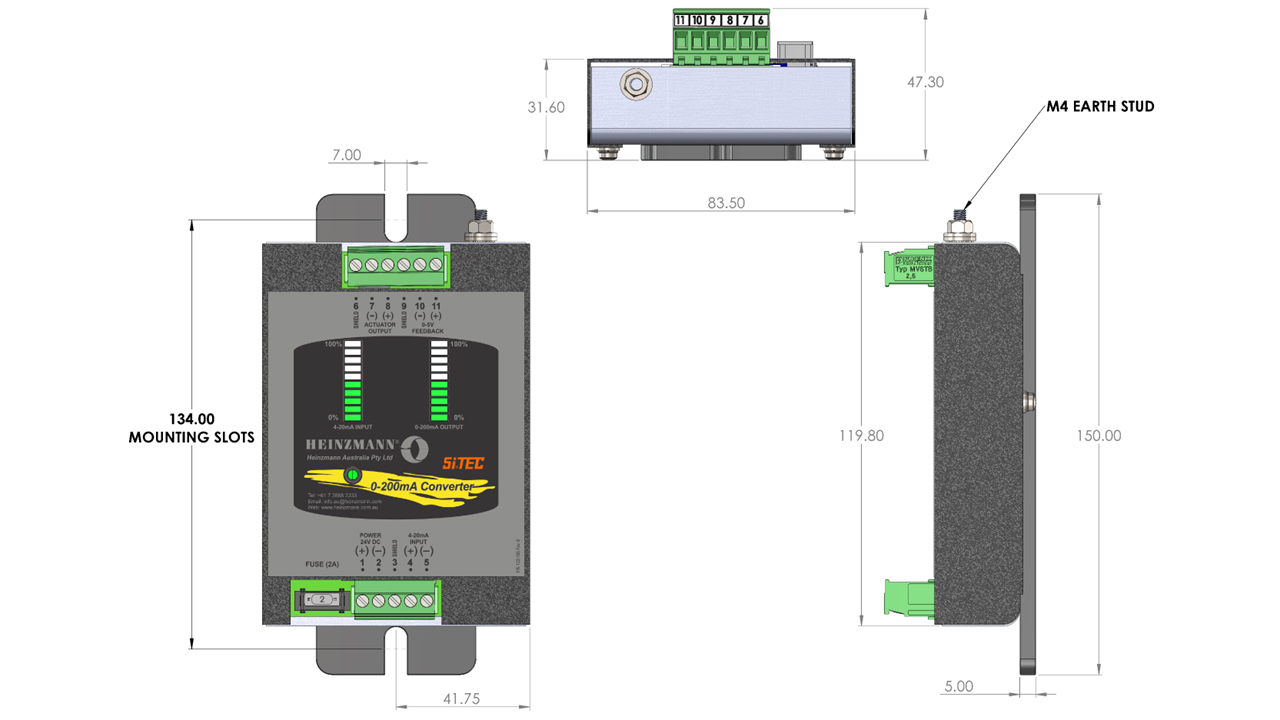

Technical Drawing

Data Sheet

  • 1 x 4-20 mA input (isolated from power supply and output signal)
  • 1 x 0-200 mA output (preset with no calibration required) and 1 x 0-5 Vdc output (for actuator position feedback)
  • Internal flush mounted with 2 x M7screws required

Applications

Petrochemical
Sugar Mills
Oil and Gas
Power Plants
Pumps
Fans
Shredders
Mills
Compressors
