DataView is a dedicated data logging program for the Si-TEC system which may include third party device nodes (Modbus®). The system has capability of 99 data points for 24 nodes on a 400 msec update rate for all data.
Logging Software Data View
Data View Instrument Panel
Data View Trending
Logging Software - DataView
The logging software data view uses a Windows PC operating system. It performs high-speed monitoring and logging of Si-TEC Xtend modules simultaneously up to 24 units.
- Real time logging e.g. continuous logging typically < 500 msec total scan loop time for all Si-TEC Xtend modules via Data Hub
- Log files are stored and archived based on date including day, week, month and year, with new log files created at the start of each day
- User-friendly set up and configuration of DataView parameters with 100 data points per Si-TEC Xtend module
- User-friendly diagnostics of logged files for trouble shooting purposes
Suitable for:
- Si-TEC Xtend CGC controllers
- Si-TEC Xtend GSM controllers
- Si-TEC Xtend ADG controllers
- Si-TEC BDG controller
- HPC I/H Converter
- Temperature Scanner

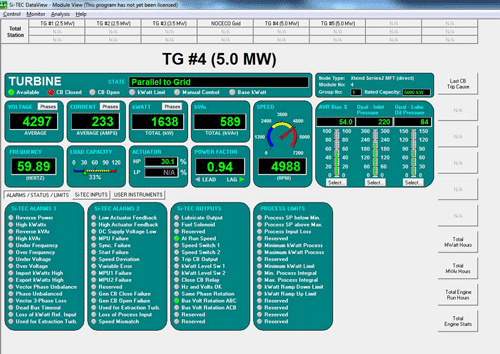

DataView Instrument Panel

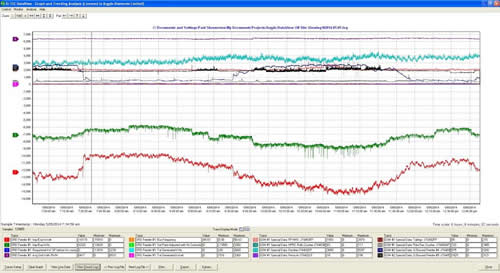

DataView graph trending and data logging
