Temperature monitoring unit up to 32 channels (T/C, RTD or “combo” units). Also includes alarm outputs and Modbus RS-458 communication port for remote (DCS) monitoring.

Leaflet Genset Controls

loading...

Temperature Scanner

Monitoring

Bar Graph

Trending

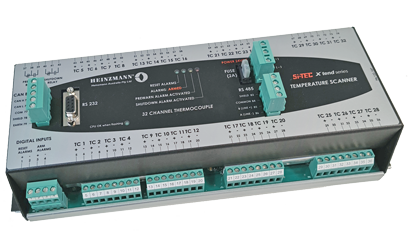

Temperature Scanner

The HEINZMANN Australia temperature scanner can monitor up to 32 temperatures simultaneously. It is used for steam tubines, diesel and gas engines and for generators.

More informationen

I/O Overview

Data Sheet

  • 32 thermocouple via J, K or N type thermocouples
  • 32 RTD, or a combination of thermocouple and RTD
  • High, deviation and differential alarm set points
  • 2 levels of alarm, warning and shutdown
  • Fahrenheit and Celsius modes
  • Modbus 232 ASCII, 485 ASCII, 485 RTU

Applications

Mining Mining
Oil and Gas Oil & Gas
Standby Power Systems Standby Power Systems
Hospitals Hospitals

Engine cylinder temperature monitoring

Platzhalter

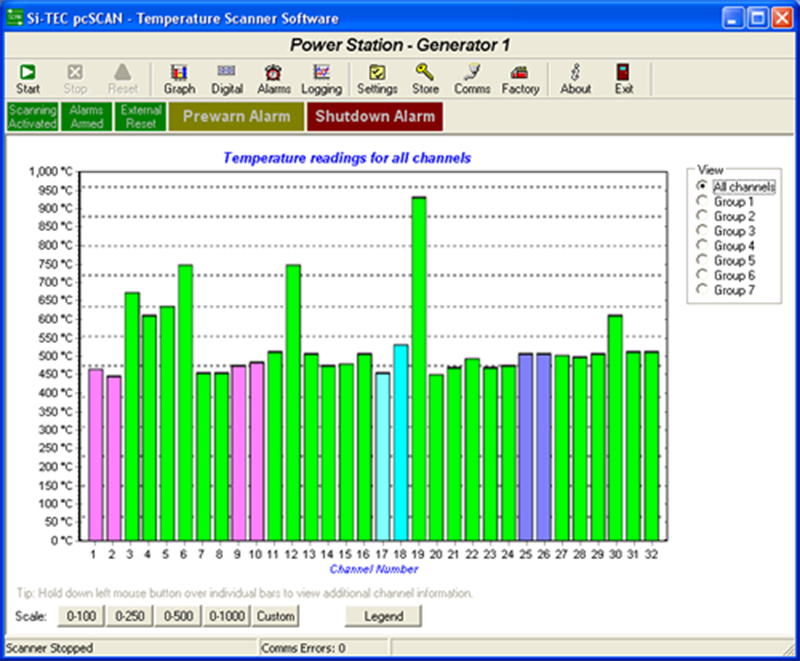

Engine cylinder temperature bar graph

Engine cylinder temperature bar graph

pcTune screen 2

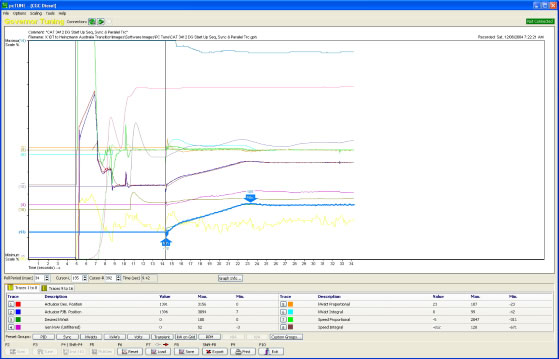

A Caterpillar 3412 diesel generator from initial start command to synchronised (< 10sec) to ramping on load
